To create a new autonomy application, we need to create a new state machine which defines the logic flow and a robot system which coordinates the hardware on the physical (or virtual) robot. We need to implement the following components:

Component	Description
Robot System	Provides sensor data and accepts control commands
Robot System Handler	Instantiates robot system and manages its control threads
Actions	Commands to execute when switching between states
Guards	Check if the transition between states is valid or not
Internal Actions	Process robot state continuously and trigger actions accordingly

Creating a Robot System

A robot system is responsible for owning any ControllerHardwareConnectors and interacting with any hardware that the autonomy application will be utilizing. Examples can be found in include/robot_systems. New robot systems should extend BaseRobotSystem and add any ControllerHardwareConnectors to the system in the derived class constructor using controller_hardware_connector_container_.setObject(my_controller_connector_). Keep in mind that only one instance of each ControllerHardwareConnector type can be stored in the container. The new robot system should expose any additional hardware functionality that will be used in the state machine, e.g. takeoff() or land() for the UAVSystem.

The state machine actions will have access to the robot system and interact with controllers by calling the robot system setGoal function templated on the controller it wants to use to navigate to the given goal.

Creating Actions

Actions define commands to execute when transitioning between states. Examples can be found in include/actions_guards. Actions which do not need access to the event which triggered the action should derive from EventAgnosticActionFunctor<RobotSystemT, LogicStateMachineT> and override the run(RobotSystemT& LogicStateMachineT&) function with the command to be executed. See include/land_functors.h for an example.

Actions which do need access to the triggering event should derive from ActionFunctor<EventT, RobotSystemT, LogicStateMachineT> and override the run function with the command to execute. See include/position_control_functors.h for an example.

Creating Internal Actions

Internal actions define a behavior that is executed while in a particular state. They should derive from EventAgnosticActionFunctor<RobotSystemT, LogicStateMachineT> and override its run function with the intended behavior. See PositionControlInternalActionFunctor_ in include/position_control_functors.h for an example.

Creating Guards

Guards check if a triggered transition between states is valid or not. For example, the TakeoffTransitionGuardFunctor_ keeps a UAVSystem from taking off if the battery level percentage is below some threshold. Guards which do not need access to the triggering event should derive from EventAgnosticGuardFunctor<RobotSystemT, LogicStateMachineT> and override the guard function to return true when a transition is valid and false otherwise.

Guards which do need access to the triggering event should inherit from GuardFunctor<EventT, RobotSystemT, LogicStateMachineT> and override its guard fuction. See PositionControlTransitionGuardFunctor_ in include/position_control_functors.h for an example.

Creating a State Machine

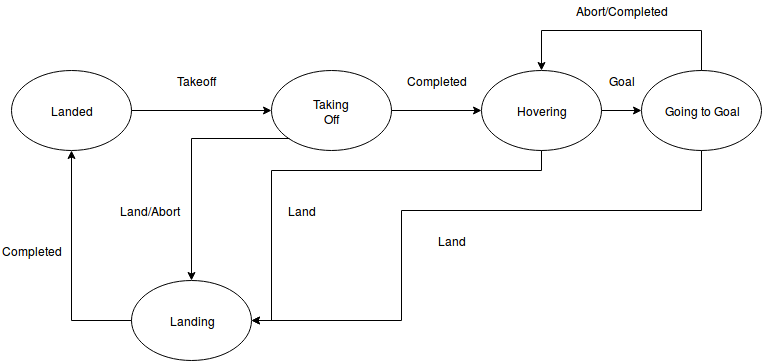

The state machine defines the logic of the system using the defined actions, states, and guards. A "front end" for the state machine defines the connections and transitions between states. The front end should derive from both msmf::state_machine_def<StateMachineFrontEnd> and BaseStateMachine<RobotSystemT>. Its transition_table will define the state machine itself by specifying which action will cause which state transitions and which guards will check the validity of the transitions. See include/state_machines/uav_state_machine.h and its associated flow chart below for an example and see here for a more in depth explanation of the underlying boost mechanisms.

The state machine that we will interact with will be of type boost::msm::back::thread_safe_state_machine<StateMachineFrontEnd>.

Any new state machine must include using BaseStateMachine<UAVSystem>::no_transition to avoid type ambiguities.

Creating a System Handler

The system handler should have a member of type CommonSystemHandler<LogicStateMachineT, EventManagerT, RobotSystemT>, which will automatically take care of instantiating and managing the logic state machine it is templated on. The system handler must call the CommonSystemHandler startTimers function to start the state machine. The system handler will need to instantiate the robot system and any hardware drivers and spawn any timers for stepping controllers owned by the robot system. See include/system_handlers/uav_system_handler.h for an example.

Creating a Node

Create an executable with the following structure:

int main(int argc, char** argv) {
  ros::init(argc, argv);
  ros::NodeHandle nh;
  // Load config into config
  MySystemHandler<MyStateMachine, MyEventManager>(nh, config)
  ros::spin();
}

See src/system_handler_nodes/uav_system_node.cpp for an example.
